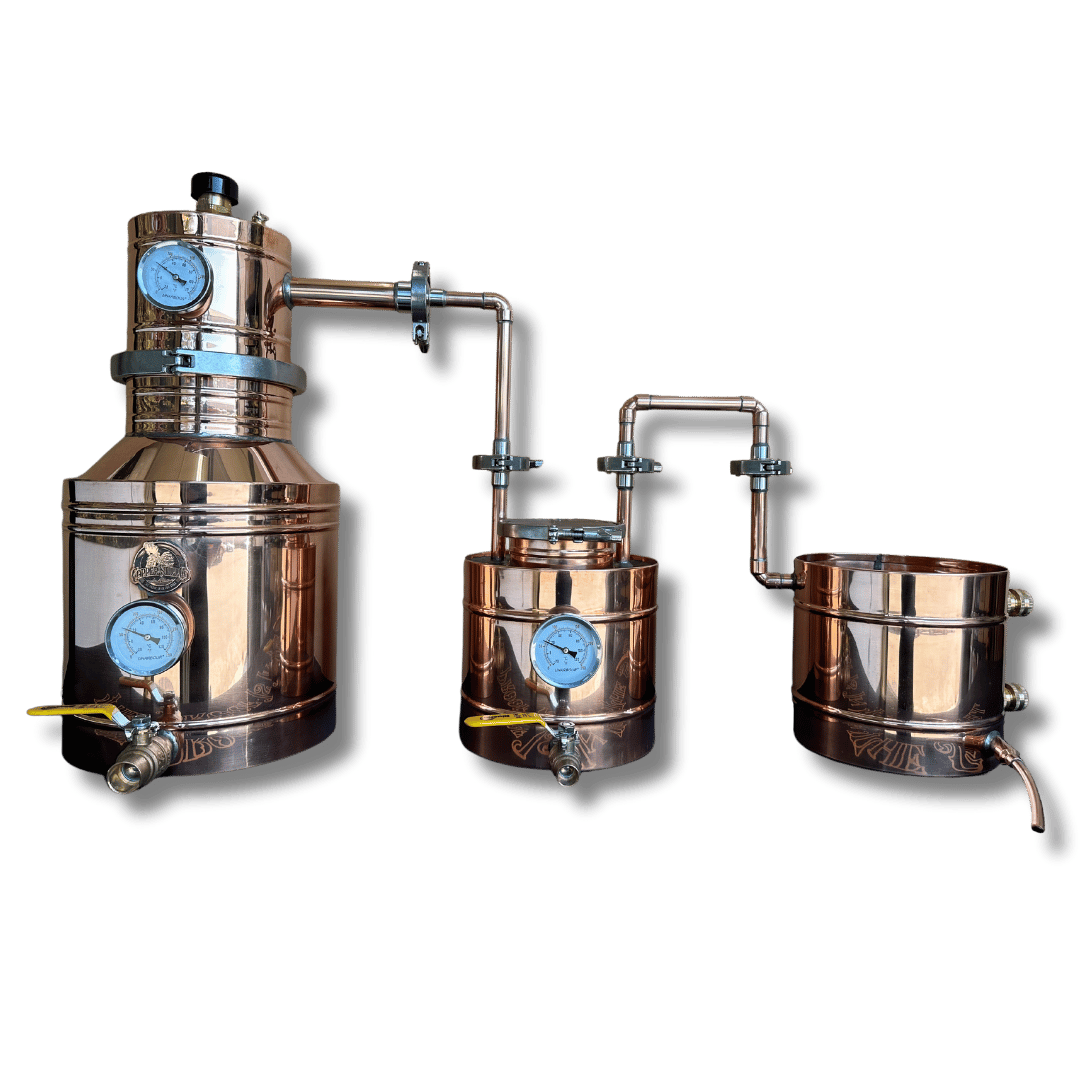

The CSC Mini +
Size
3 Gallon Still
1.5 gallon thumper
1.5 gallon worm
Additional Info
Entire unit made with 20 oz/22 gauge copper
10” diameter X approx. 20” tall with head
6” tri-clamp neck
Helmet comes with Vacuum Relief Valve & Fast action Pressure Release Valve
3/4” Brass ball valve on main pot
Choice of 1/2” copper union fittings or 3/4” stainless tri-clamp cionnections
1/2” copper tubing throughout system. (1” coming out of the helmet)
Choose the number of Temperature gages you’d like

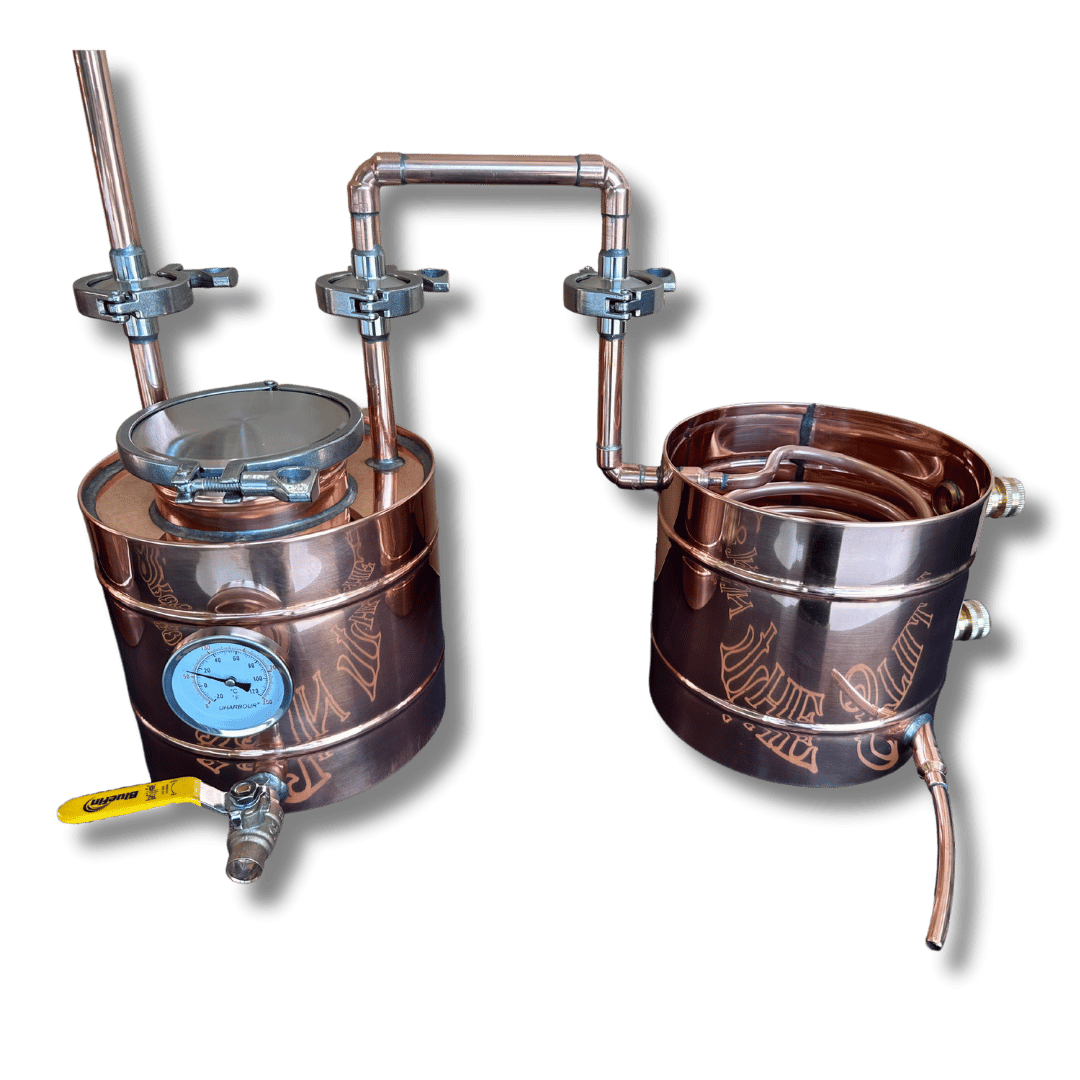

Interchanging system will run with Thumper & Worm or Just Worm

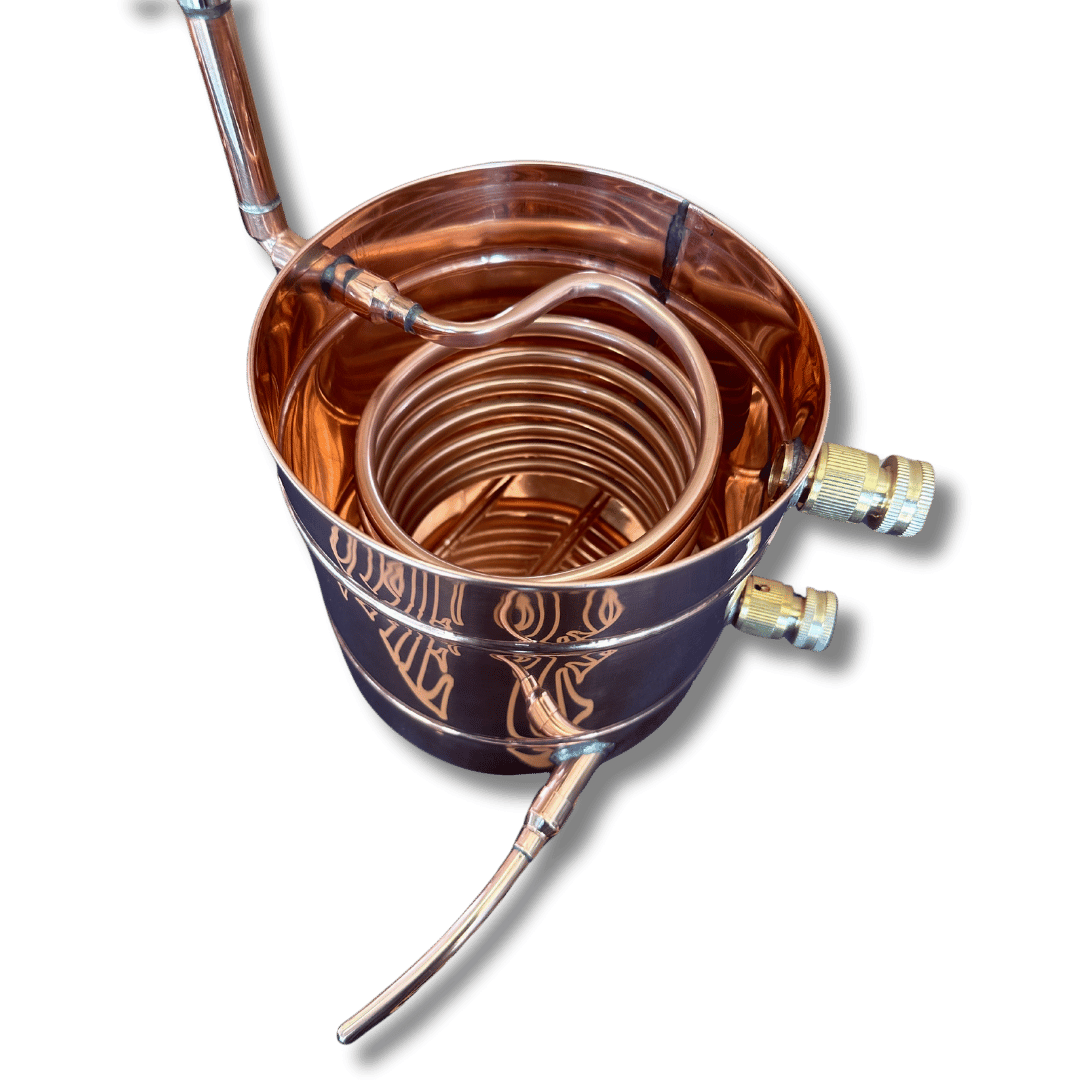

12ft of 3/8" OD copper worm coil.
4” Fruit Port in thumper with ball 1/2” brass ball valve drain
Brass quick snap hose connection IN/OUT worm
Expected Production
A Mash with an ABV at 10% - 20% can produce .3 - .6 gallons
Size
3 Gallon Still
1.5 gallon thumper
1.5 gallon worm
Additional Info
Entire unit made with 20 oz/22 gauge copper
10” diameter X approx. 20” tall with head
6” tri-clamp neck
Helmet comes with Vacuum Relief Valve & Fast action Pressure Release Valve
3/4” Brass ball valve on main pot
Choice of 1/2” copper union fittings or 3/4” stainless tri-clamp cionnections
1/2” copper tubing throughout system. (1” coming out of the helmet)
Choose the number of Temperature gages you’d like
Interchanging system will run with Thumper & Worm or Just Worm
12ft of 3/8" OD copper worm coil.
4” Fruit Port in thumper with ball 1/2” brass ball valve drain
Brass quick snap hose connection IN/OUT worm
Expected Production
A Mash with an ABV at 10% - 20% can produce .3 - .6 gallons
Size
3 Gallon Still
1.5 gallon thumper
1.5 gallon worm
Additional Info
Entire unit made with 20 oz/22 gauge copper
10” diameter X approx. 20” tall with head
6” tri-clamp neck
Helmet comes with Vacuum Relief Valve & Fast action Pressure Release Valve
3/4” Brass ball valve on main pot
Choice of 1/2” copper union fittings or 3/4” stainless tri-clamp cionnections
1/2” copper tubing throughout system. (1” coming out of the helmet)
Choose the number of Temperature gages you’d like
Interchanging system will run with Thumper & Worm or Just Worm
12ft of 3/8" OD copper worm coil.
4” Fruit Port in thumper with ball 1/2” brass ball valve drain
Brass quick snap hose connection IN/OUT worm
Expected Production
A Mash with an ABV at 10% - 20% can produce .3 - .6 gallons
We offer a ‘boutique’ copper still made with top quality materials, parts and artisanship.
To ensure people don’t get discouraged on their distilling journey, convenience and ease of use was a primary factor in our still design.
These factors together create a copper still that is both functional and beautiful! to look at, a true work of art!
At CopperStillCo we value quality above all else! Quality products and direct, personal customer service. We want to build relationships in our industry and with our customers. CopperStillCo is building a brand and family community of like minded folks.
With Industry leading quality, we believe we meet the task in providing top of the line, handcrafted copper stills. Certainly, anyone can claim quality. That’s why we say “The PROOF is in the Still” see for yourself!
We look forward to building your very own CopperStillCo still!
